Step 1: Verifying the configuration parameters for ICM
Step 3: Publishing Services

Summary

The purpose is this document is to show step by step to configure webgui for SAP Netweaver . Applies to SAP Netweaver R/3 System

Author: Priyashantha Fernando


Use Transaction SMICM (ICM Monitor).
Displays the ICM configuration and monitoring. Make sure it is running. Check the following ICM parameters.
[Menu-> Goto -> Parameters ->Display]
  1. icm/server_port_0 PROT=HTTP,PORT=8000
  2. icm/host_name_full <Full Qualified Domain Name>
I will use the domain name as testp1.bomain.cpstl
Following parameters should be checked.
  1. /default_host/sap/bc/gui/sap/its/webgui
  2. /default_host/sap/public/bc/ur
  3. /default_host/sap/public/bc/its/mimes
Use Tcode ‘SICF’ to enable services. Then execute it to show the services trees.
Then activate the mentioned services according to the below guide.
  1. /default_host/sap/bc/gui/sap/its/webgui
  2. /default_host/sap/public/bc/ur
  3. /default_host/sap/public/bc/its/mimes
Right click on the relevant service and then activate it.


Http Ip 8000 Sap Bc Gui Sap Its Webgui

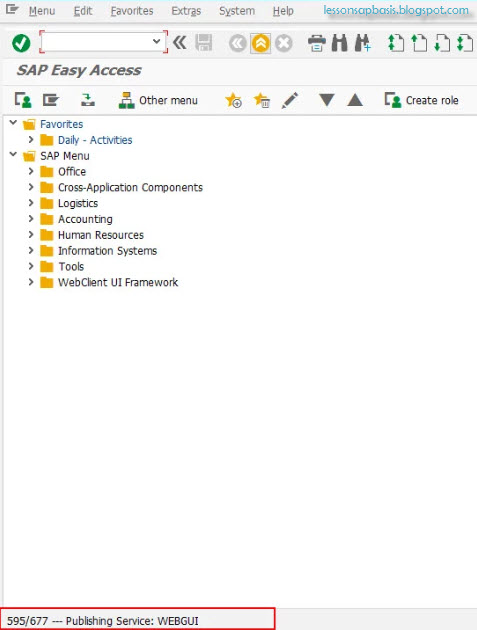

Run T-Code SIAC_PUBLISH_ALL_INTERNAL to activate the services. Will take few minutes. While running it will show the status message like:





  1. http://<IP>:8000/sap/bc/gui/sap/its/webgui
Then the login screen will come.

Http // Ip 8000/sap/bc/gui/sap/its/webgui

Webgui
Then ask you to provide the username and password. Login an roam in to the SAP
Refecence :SAPNOTE 517484
